Model SWC - BF Stretching-Out and Drawing-Back Flange Type Universal Coupling



Product Description







Introduction of Model SWC - BF Stretching-Out and Drawing-Back Flange Type Universal Coupling



Universal coupling is no bolt structure, bearing fixed without bolt, to avoid the damage as a result of bolt shear weak links, and prolong service life, easy to maintain. Applicable to steel rolling machinery, lifting transportation machinery and other heavy machinery, connecting two different axis transmission shafting, turning diameter of 100 ~ 620 mm; Transfer nominal torque 1.25 ~ 1000 kn m., the axis Angle is 15 ° ~ 25 °.





Type of Model SWC - BF Stretching-Out and Drawing-Back Flange Type Universal Coupling



Model

Description

SWC-BH

Welded shaft type with length compensation

cardan shaft coupling

SWC-BF

Flanged shaft type with length compensation

cardan shaft coupling

SWC-DH

Welded shaft short type with length compensation

cardan shaft coupling

SWC-CH

Welded shaft long type with length compensation

cardan shaft coupling

SWC-WH

Welded shaft type without length compensation

cardan shaft coupling

SWC-WF

Flanged shaft type without length compensation

cardan shaft coupling

SWC-WD

Short type without length compensation

cardan shaft coupling

SWP-A

Long type with length compensation /

expansion joint

SWP-B

Short type with length compensation /

expansion joint

SWP-C

Short type without length compensation /

expansion joint

SWP-D

Long type without length compensation /

expansion joint

SWP-E

Double flange with length compensation /

expansion joint

SWP-F

Long type with big length compensation /

big expansion joint

SWP-G

Super Short type with length compensation /

expansion joint

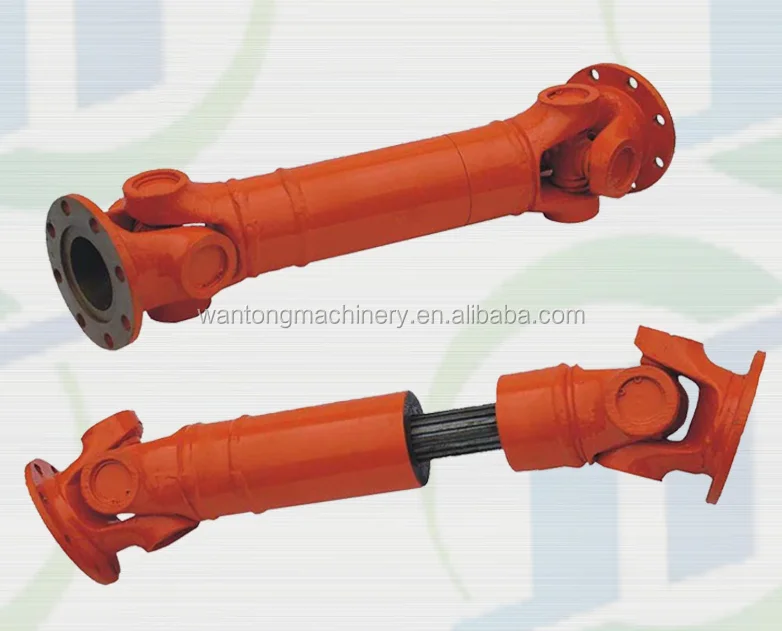

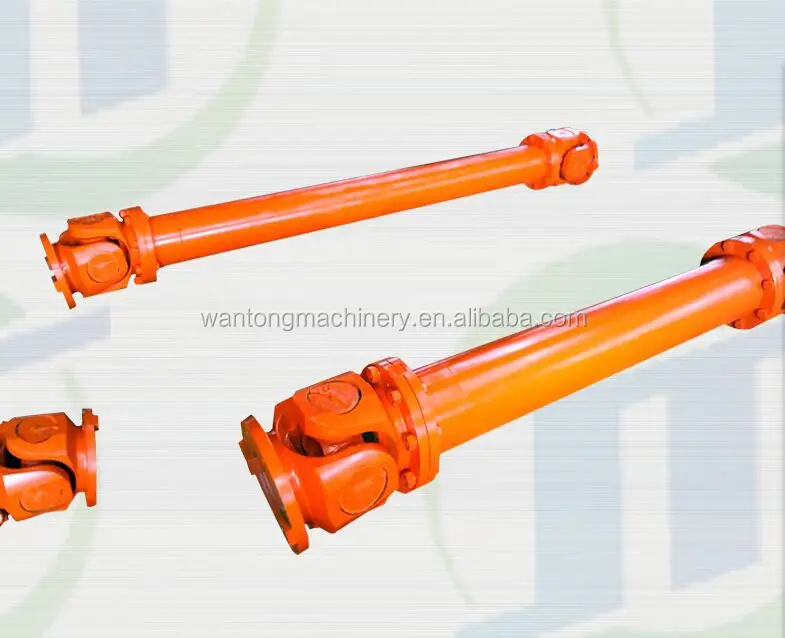

 SWC-CH universal coupling2.jpgSWC-DH universal coupling2.png







Specification of Model SWC - BF Stretching-Out and Drawing-Back Flange Type Universal Coupling



Model

Turning Diameter
D

Nomial Torgue
Tn KN.m

Fatigue Torque

Tf
Kn.m

Axis Fold Angleβ

Standard Expansion Amount

Size

mm

the Moment of Interia

I kg.m2

Weight

G kg



Ls



Lmin



D3



Lm



Lmin

Growth

per 100mm



Lmin

Growth

per 100mm

SWC180BF

180

12.5

6.3

≤25

100

810

114

110

0.267

0.0070

80

2.8

SWC225BF

225

40

20

≤15

140

920

152

120

0.778

0.0234

138

4.9

SWC250BF

250

63

31.5

≤15

140

1035

168

140

1.445

0.0277

196

5.3

SWC285BF

285

90

45

≤15

140

1190

194

160

2.873

0.0510

295

6.3

SWC315BF

315

125

63

≤15

140

1315

219

180

5.094

0.0795

428

8.0

SWC350BF

350

180

90

≤15

150

1410

267

194

9.195

0.2219

632

15.0

SWC390BF

390

250

125

≤15

170

1590

267

215

16.62

0.2219

817

15.0

SWC440BF

440

355

180

≤15

190

1875

325

260

28.24

0.4744

1290

21.7

SWC490BF

490

500

250

≤15

190

1985

325

270

46.33

0.4744

1631

21.7

SWC550BF

550

710

355

≤15

240

2300

426

305

86.98

1.3570

2567

34.0

SWC620BF

620

1000

500

≤15

240

2500

426

340

147.50

1.357

3267

34.0

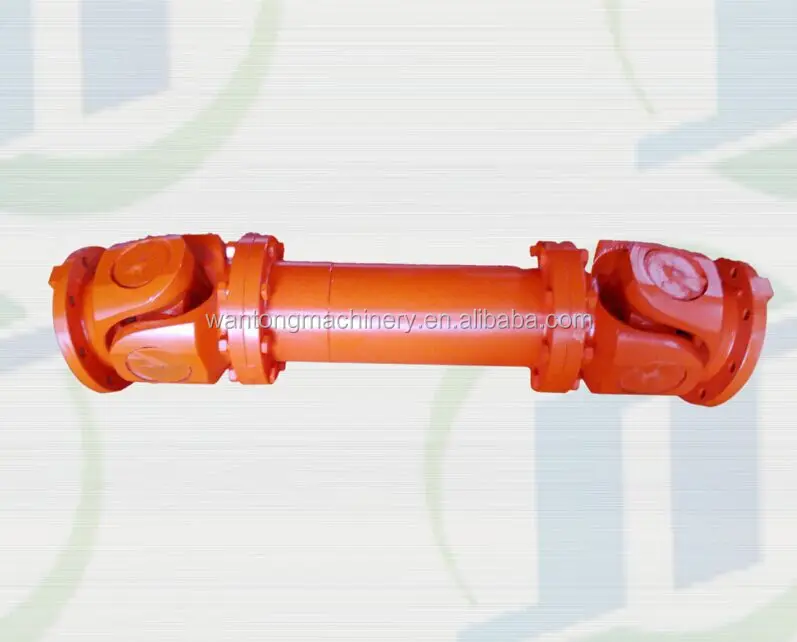

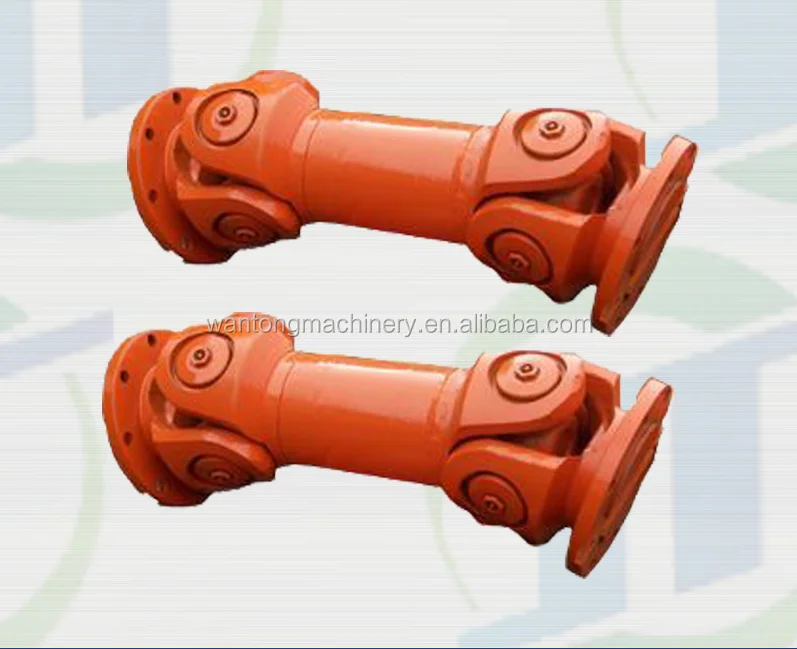

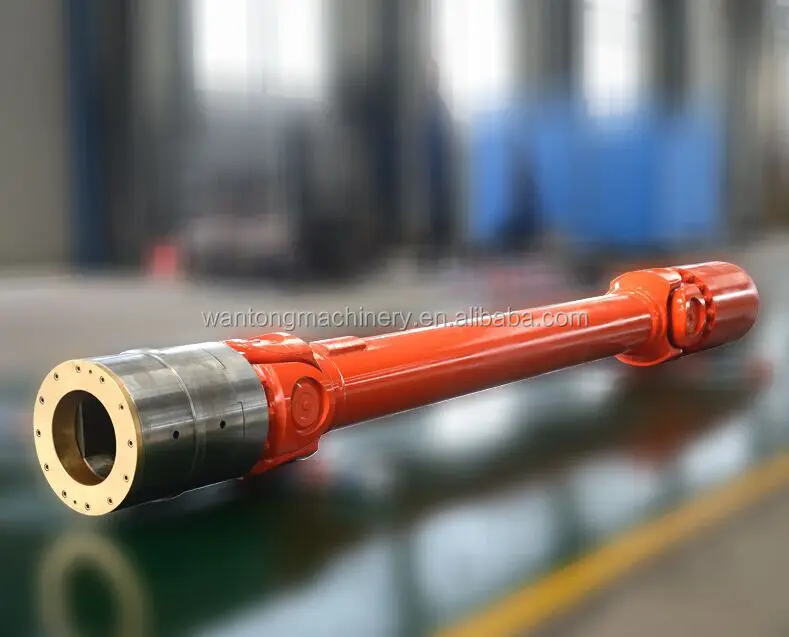

Photo of Model SWC - BF Stretching-Out and Drawing-Back Flange Type Universal Coupling



 SWC-BF universal coupling1.jpgSWC-BF universal coupling2.pngSWC-BF universal coupling3.jpg





Packaging & Shipping





Package of Model SWC - BF Stretching-Out and Drawing-Back Flange Type Universal Coupling

Plastic bag, then Carton / Plywood case, or Customized

54

Our Services





Service of Model SWC - BF Stretching-Out and Drawing-Back Flange Type Universal Coupling



1. 12 months warranty period .



2. Free maintenance .



3. High quality, Lowest price , Fast delivery, Perfect service after sale



4. Chinese golden supplier, many years engaged in couplings
